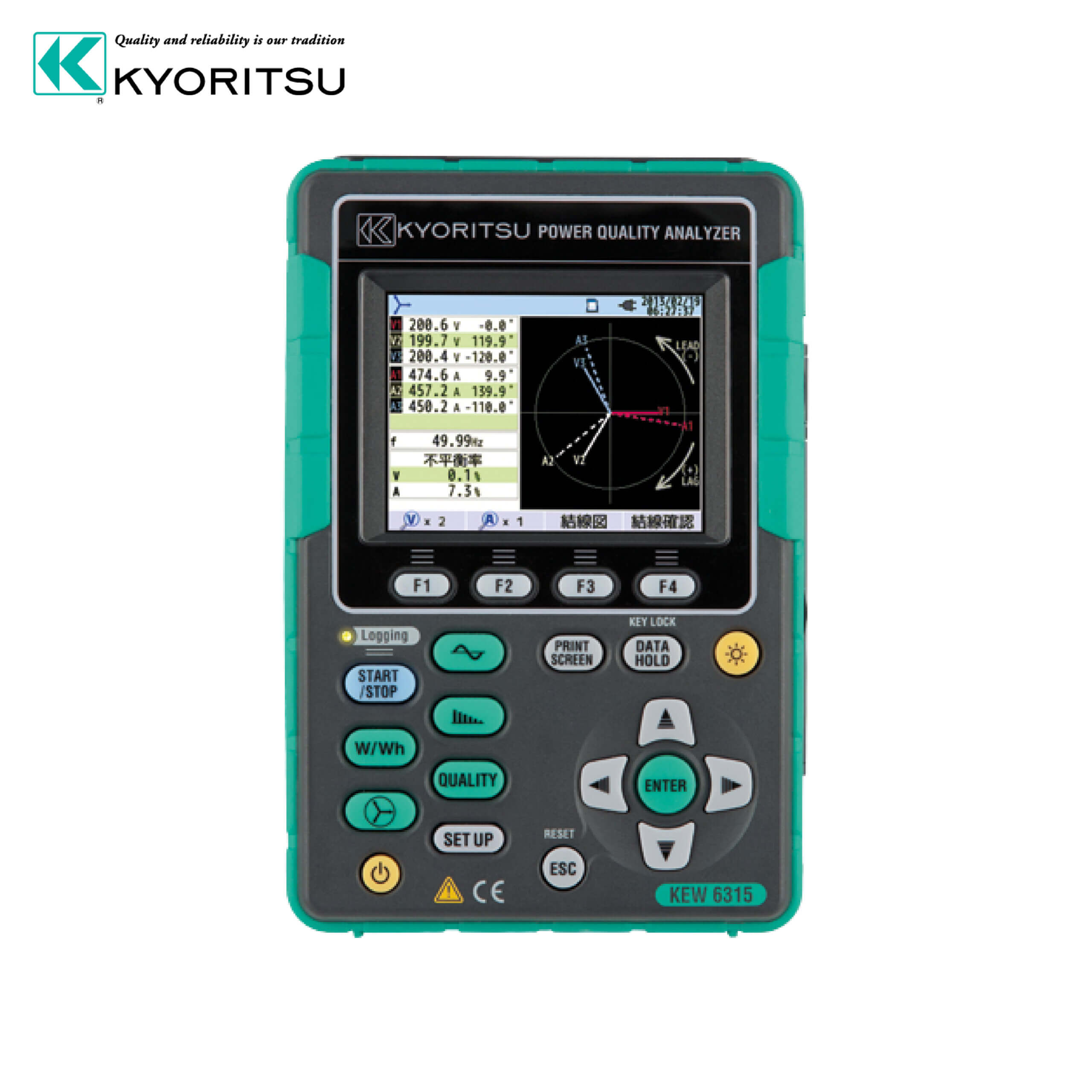

- Simultaneous Power & Power quality measurements
Power/Harmonics/Waveform/Power quality are recorded at all CHs
(Voltage:3ch,Current 4ch) - Helpful support functions
Quick Start Guide,Wiring check and Sensor detection for easy and reliable measurement - Measurement with high accuracy
Guaranteed accuracy: ±0.3%rdg(energy),
±0.2%rdg(voltage/current)
Complies with the International Standard
IEC 61000-4-30 Class S and the European Standard EN50160 - Energy consumption check on site
Trend and demand graphs for easy recognition - TFT color display with high resolution
- IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V / CAT Ⅱ 1000V
- Wiring connections: 1P2W, 1P3W, 3P3W, 3P4W
- Measurements and parameters: voltage, frequency, active power, reactive power, apparent power, active energy, reactive energy, apparent energy, power factor (cos), neutral current,transient/over demand, harmonics, quality (swell/dip/interruption, voltage, inrush current, unbalance rate), phase advance condenser, IEC flicker
- Voltage RMS: 600.0/1000V

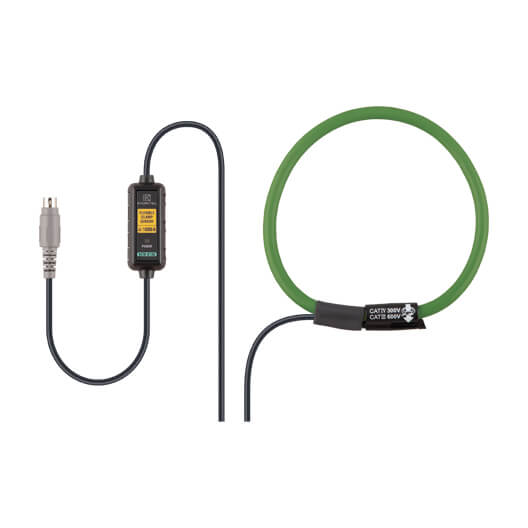

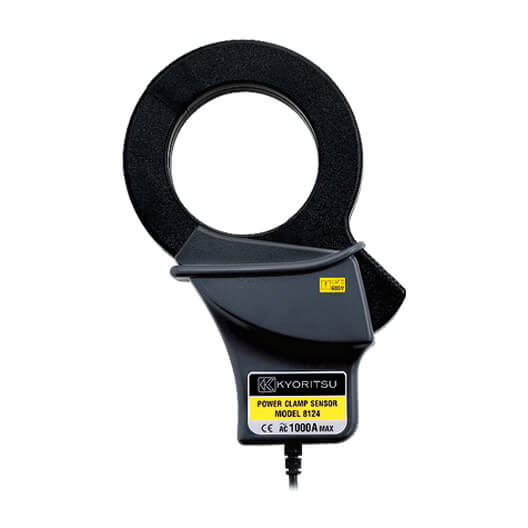

- Current RMS: 3000A maximum (current clamp dependent)
- Frequency meter range: 40 – 70Hz
