| DC V | 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±1.0%rdg±3dgt |
|---|---|
| AC V | 6.000/60.00/600.0V (Input impedance: approx.10MΩ) ±1.5%rdg±5dgt (45 – 400Hz) |
| DC A | 60.00/120.0A ±2.0%rdg±8dgt (60A) ±2.0%rdg±5dgt (120A) |
| AC A | 60.00/120.0A ±2.0%rdg±5dgt (45 – 65Hz) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±1.0%rdg±5dgt (600Ω/6/60/600kΩ) ±2.0%rdg±5dgt (6MΩ) ±3.0%rdg±5dgt (60MΩ) |
| Continuity buzzer | Buzzer sounds below 35±25Ω |
| Diode test | 2.000V±3.0%rdg±5dgt Open-loop voltage: approx. 2.7V |
| Capacitance | 400.0nF/4.000/40.00µF ±2.5%rdg±10dgt |
| Frequency | (AC A) 99.99/400.0Hz ±0.2%rdg±2dgt (100Hz) ±0.1%rdg±1dgt (400Hz) (AC V) 99.99/999.9Hz/9.999/99.99/300.0kHz ±0.2%rdg±2dgt (100Hz) ±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz) (Input sensitivity Current: more than 6A Voltage: more than 6V [- 10kHz]/more than 20V [10k – 300kHz]) |
| Conductor size | Ø12mm max. |
| Applicable standards | IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS) |
| Power source | R03 (AAA)(1.5V) × 2 * Continuous measuring time: DCV: approx. 150hours, ACA: approx. 25hours (Auto power save: approx. 15 minutes) |
| Dimension | 128 (L) × 92 (W) × 27 (D) mm |
| Weight | 220g approx. (including batteries) |
| Included Accessories | R03 (AAA) × 2, Instruction manual |

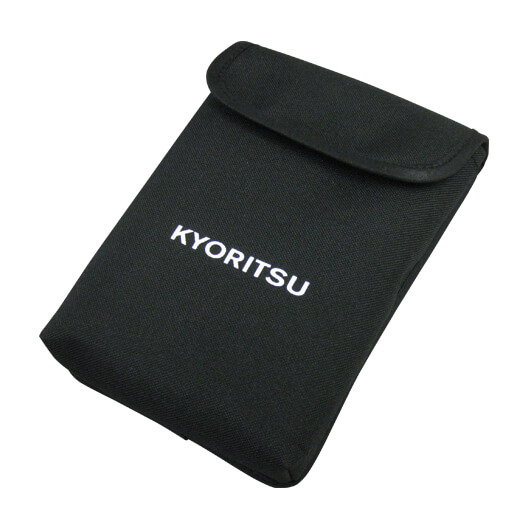

| Optional Accessories | 9107 (Carrying case [Soft]) |
