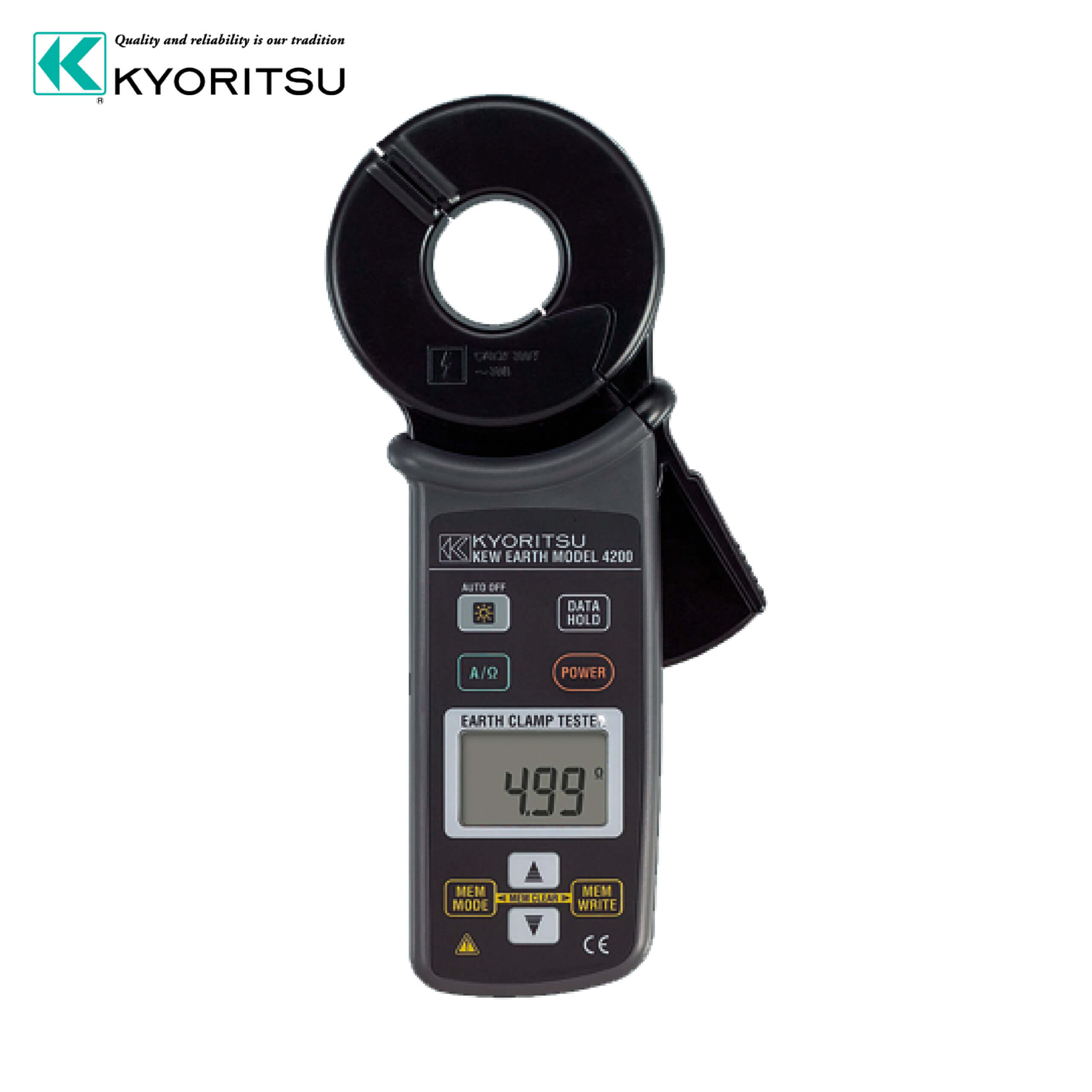

- The earth resistance from 0.05 to 1500Ω can be measured without the auxiliary earth spikes.
(The Multiple Earthing System.) - True RMS
Accurate true RMS readings of AC current including distorted waveform from 1mA to 30.0A - Noise Check Function
A function to detect current, which effects on an earth resistance measurement and display “NOISE” mark on the LCD. - Memory function
Save and display up to 100 measurement data. - Data hold function / Buzzer function / Back light function
- Compliant with Safety Standards of IEC 61010-1 : CAT IV 300V Pollution degree2
Note:
A single earthing can not be measured. (Only for Multiple Earthing System)
| Earth resistance Auto range | 20.00/200.0/1500Ω ±1.5%±0.05Ω(0.00 – 20.99Ω)* ±2%±0.5Ω(16.0 – 99.9Ω) ±3%±2Ω(100.0 – 209.9Ω) ±5%±5Ω(160 – 399Ω) ±10%±10Ω(400 – 599Ω) |
| AC current (50Hz/60Hz) Auto range | Values are displayed, but accuracy isn’t guaranted(600 – 1580Ω) 100.0/1000mA/10.00/30.0A ±2%±0.7mA(0.0 – 104.9mA) ±2%(80mA – 31.5A) |
| Operating indication | Earth resistance function : Constant voltage injection Current detection (Frequency : Approx.2400Hz) Dual Integration AC current function : Successive approximation |
| Over-range indication | “OL”is displayed when input exceeds the upper limit of a measuring range |
| Response time | Approx. 7 seconds (Earth resistance) Approx. 2 seconds (AC current) |
| Sample rate | Approx. 1 times per second |
| Current consumption | Approx. 50mA (max.100mA) |
| Measurement time | Approx.12 hours (when R6 is used) Approx.24 hours (when LR6 is used) |
| Auto power-off | Turns power off about 10 minutes after the last button operation. |
| Conductor size | Approx. Ø32mm |
| Applicable standards | IEC 61010-1 CAT Ⅳ 300V Pollution degree2 IEC 61010-2-032, IEC 61326 (EMC) |
| Power source | DC6V : R6(sizeAA manganese battery) x 4 or LR6 (sizeAA alkaline battery) x 4 |
| Dimensions | 246(L)×120(W)×54(D)mm |
| Weight | Approx. 780g (including batteries) |

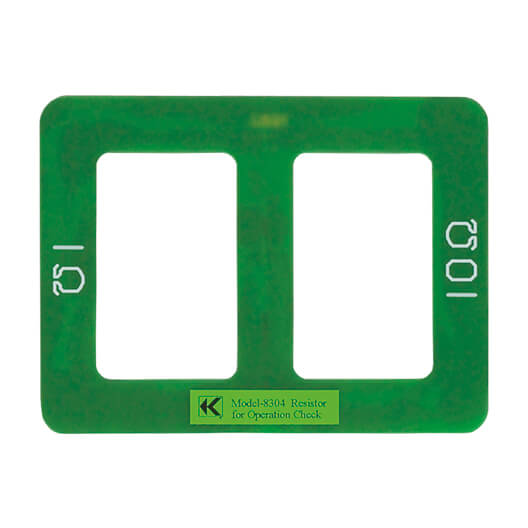

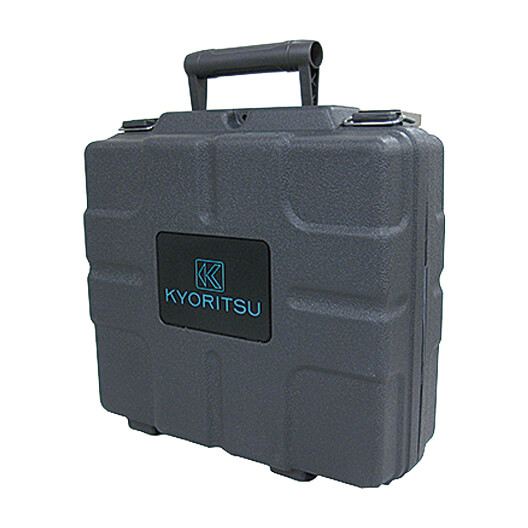

| Included Accessories | R6 x 4, Instruction manual 8304 (Resister for operation check) 9166 (Carrying case[Hard]) |
